European-Type Substation (YB / YBM Box-Type)

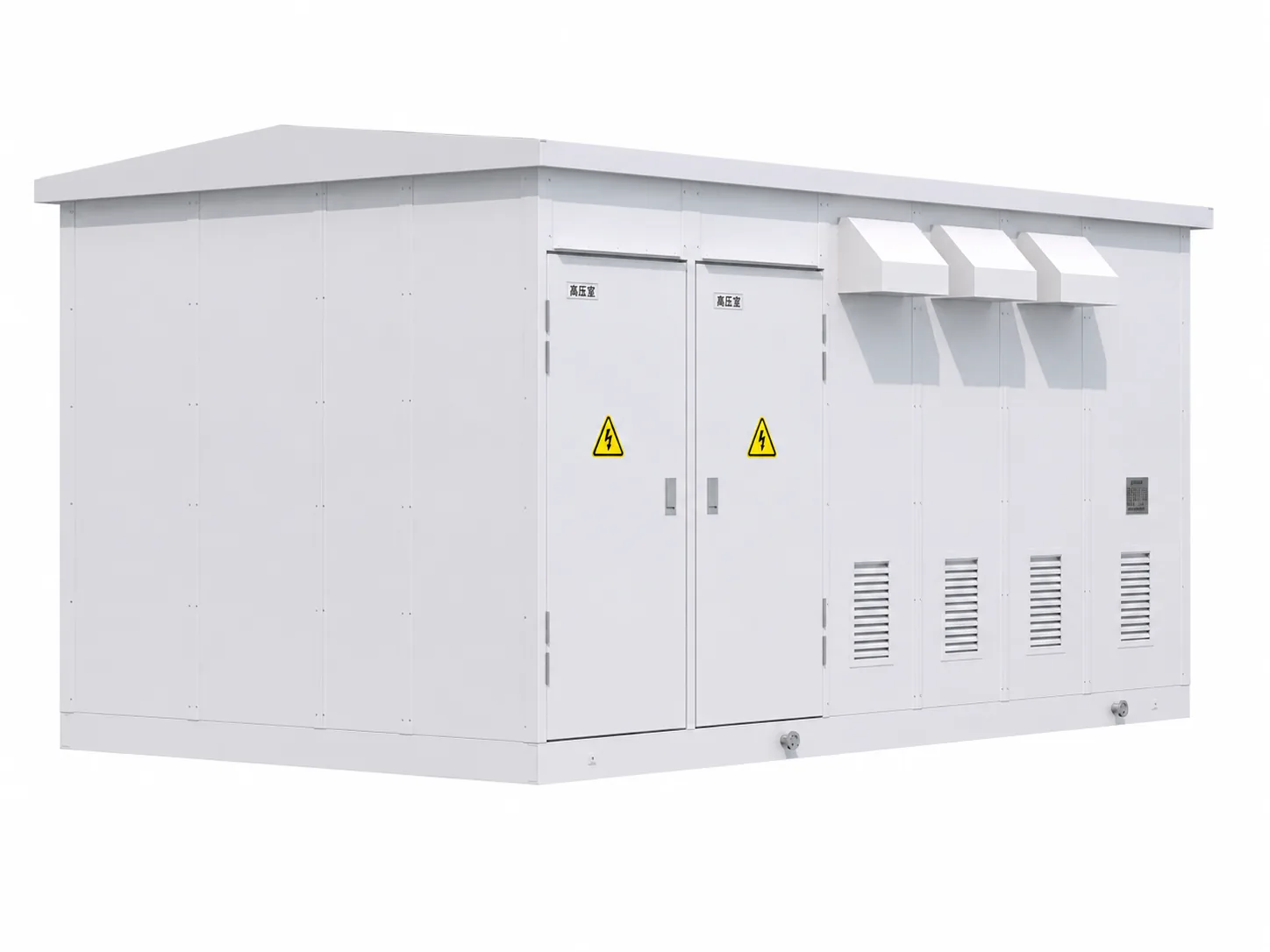

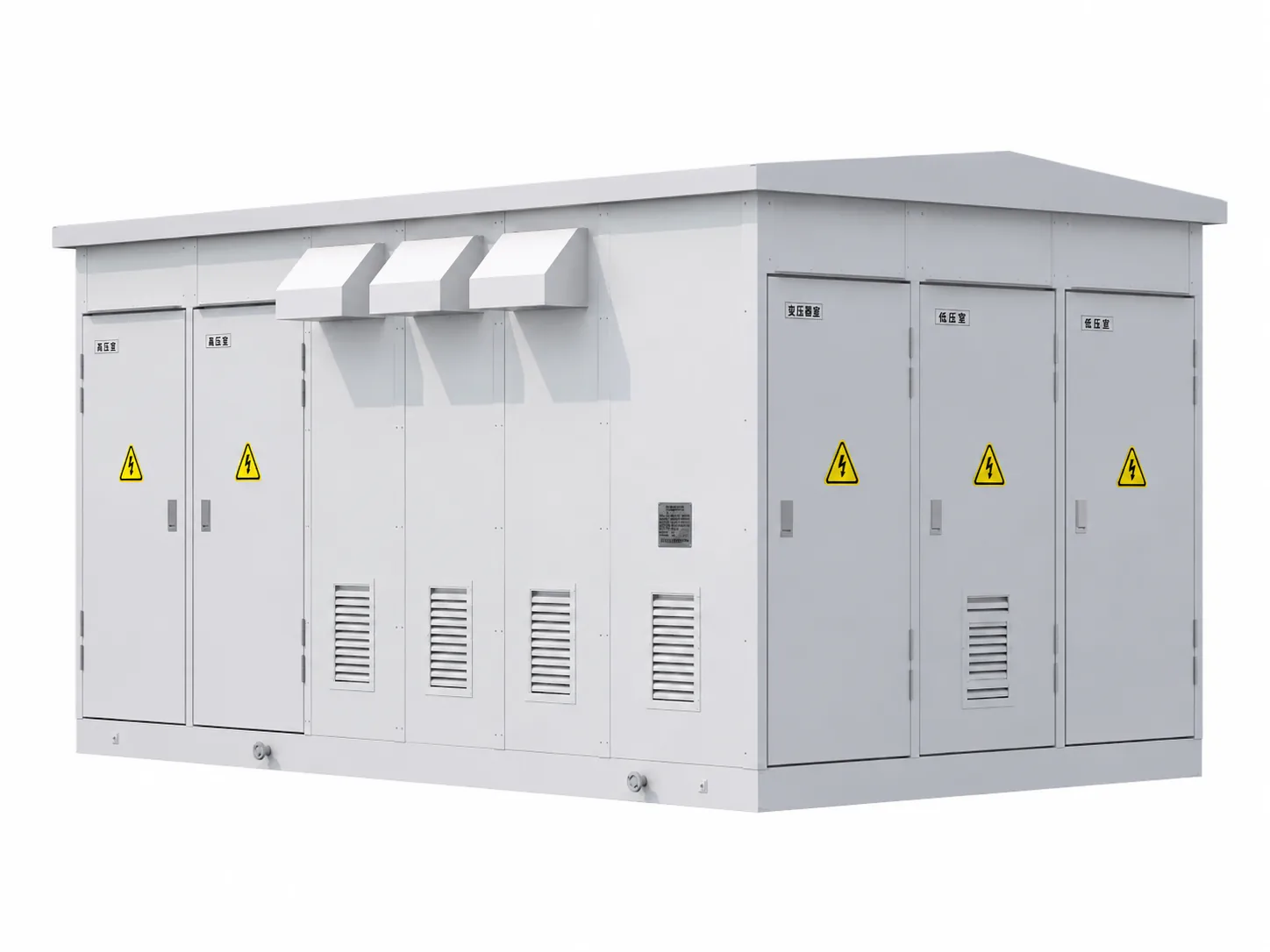

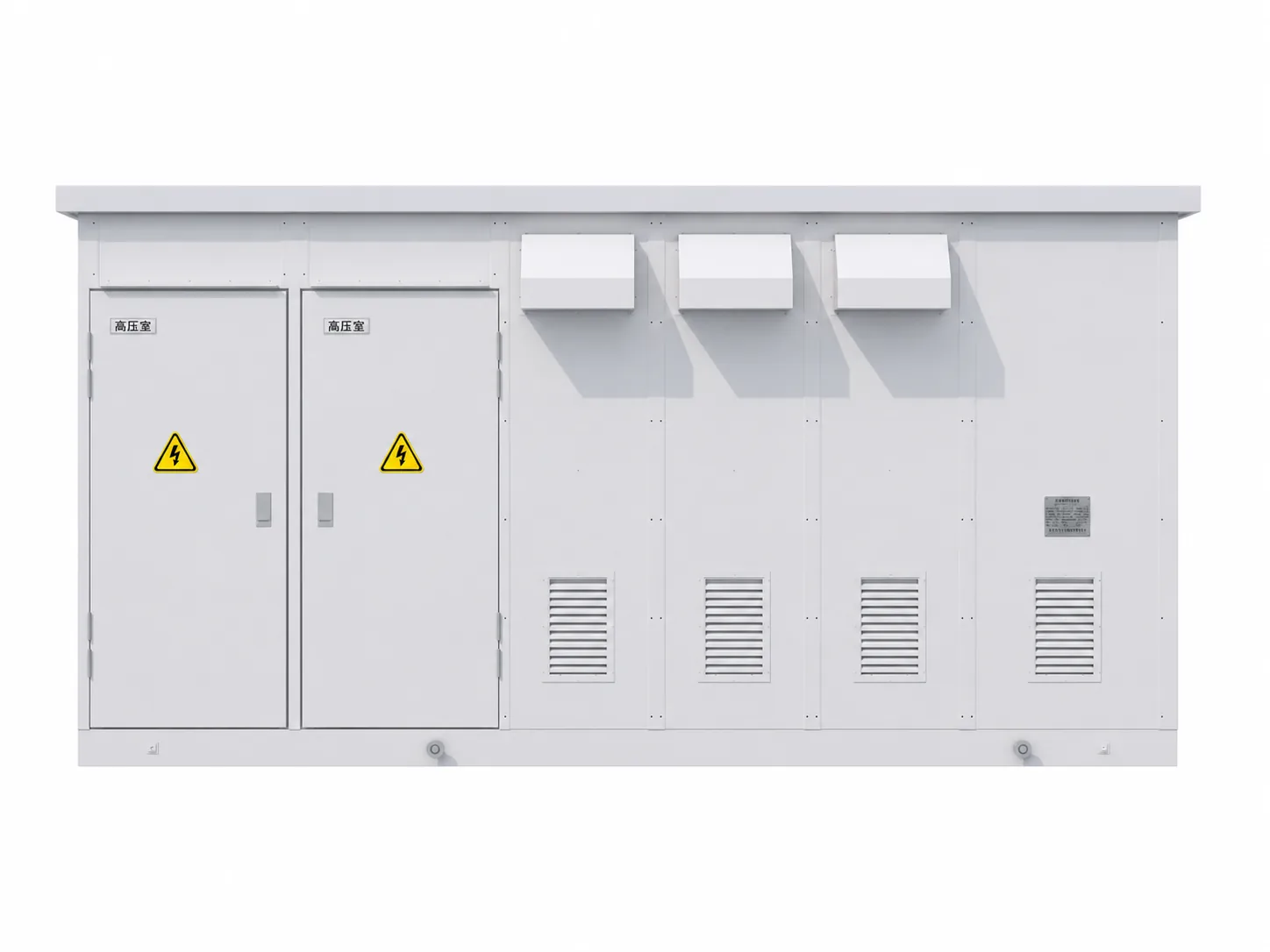

A prefabricated compact substation in the European layout: MV switchgear (RMU), distribution transformer and LV switchgear housed in separate internal compartments within a single weatherproof enclosure. Type-tested as a complete assembly to IEC 62271-202 — the natural choice for IEC-signatory markets (Southeast Asia, Middle East, Africa). Handles larger transformer capacities than the American type — used for neighborhoods, hotels, large work sites, industrial parks and renewable plants.
Key Specifications
High-voltage Rated Voltage6 – 35 kV
Low-voltage Rated Voltage0.4 / 0.69 / 0.8 / 1.14 kV
Maximum Operating Voltage40.5 kV
Rated Frequency50 / 60 Hz
Rated Capacity1000 – 8000 kVA
Product Features
- IEC 62271-202 type-tested as a system
- Separate maintainable compartments (MV / transformer / LV)
- High capacity up to 8000 kVA
- Ring or terminal supply
- IP55 weatherproof enclosure
