Substations / Prefabricated Compact Substation
Chinese-Type Substation (YB / ZBW)

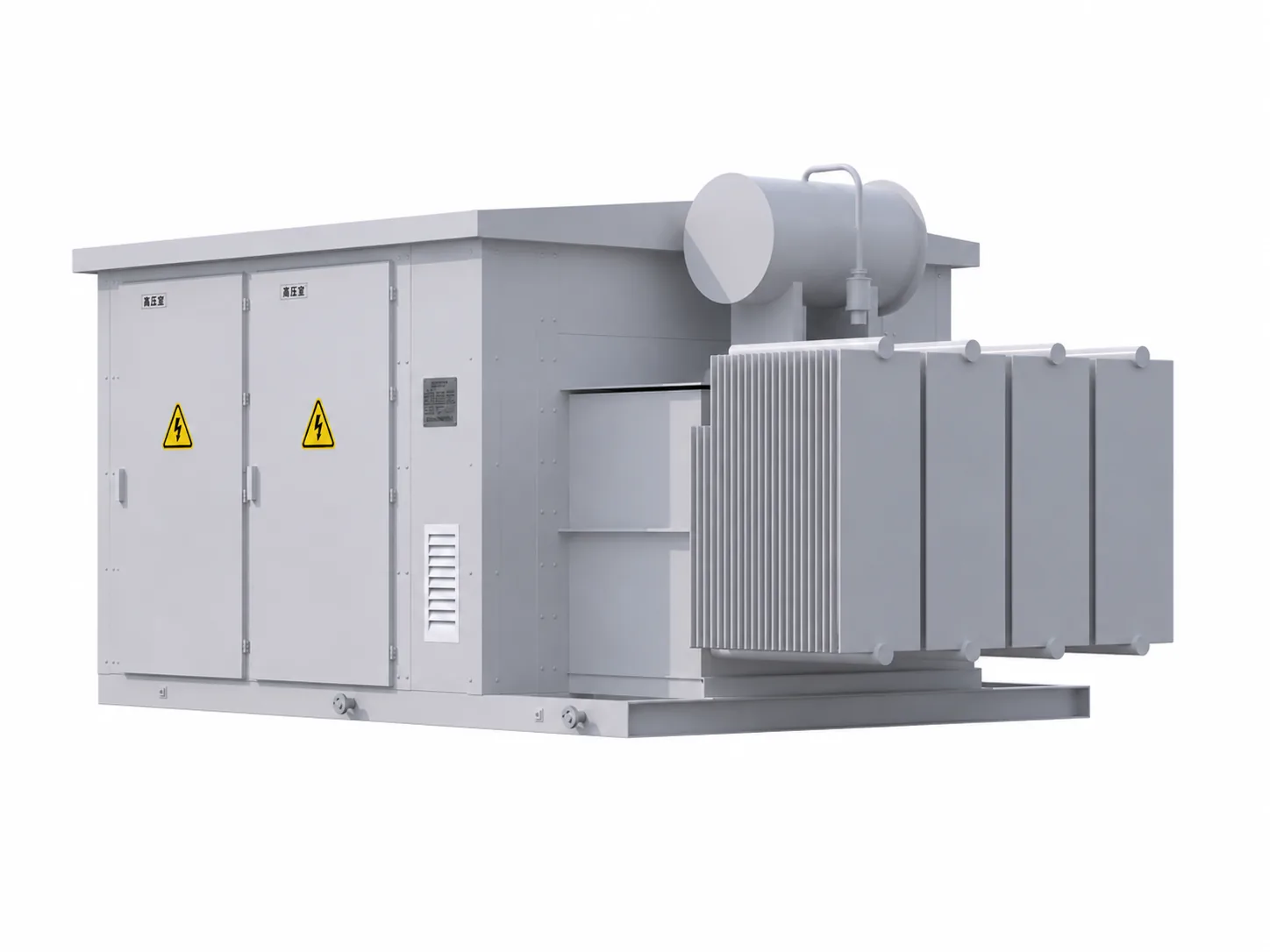

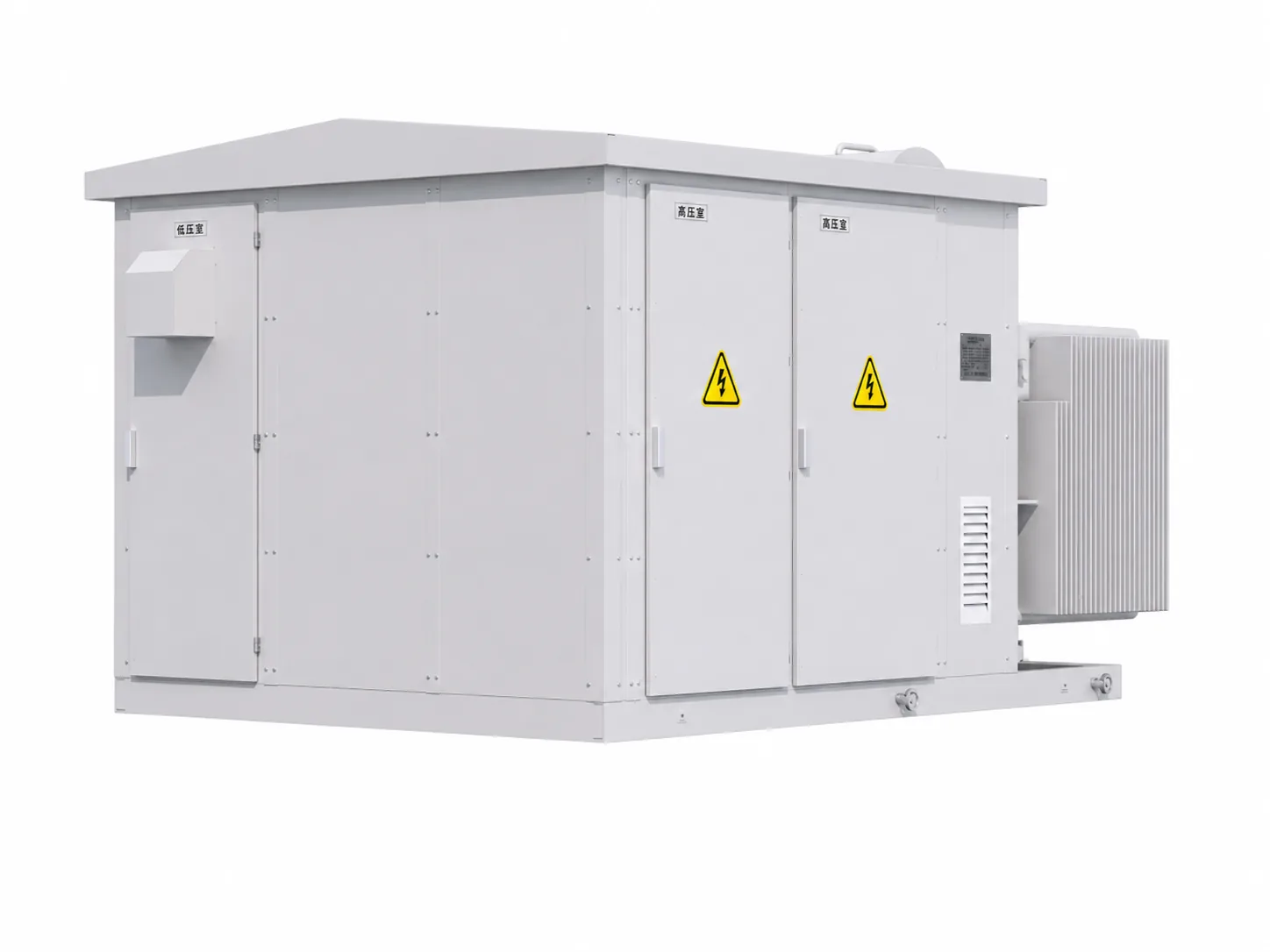

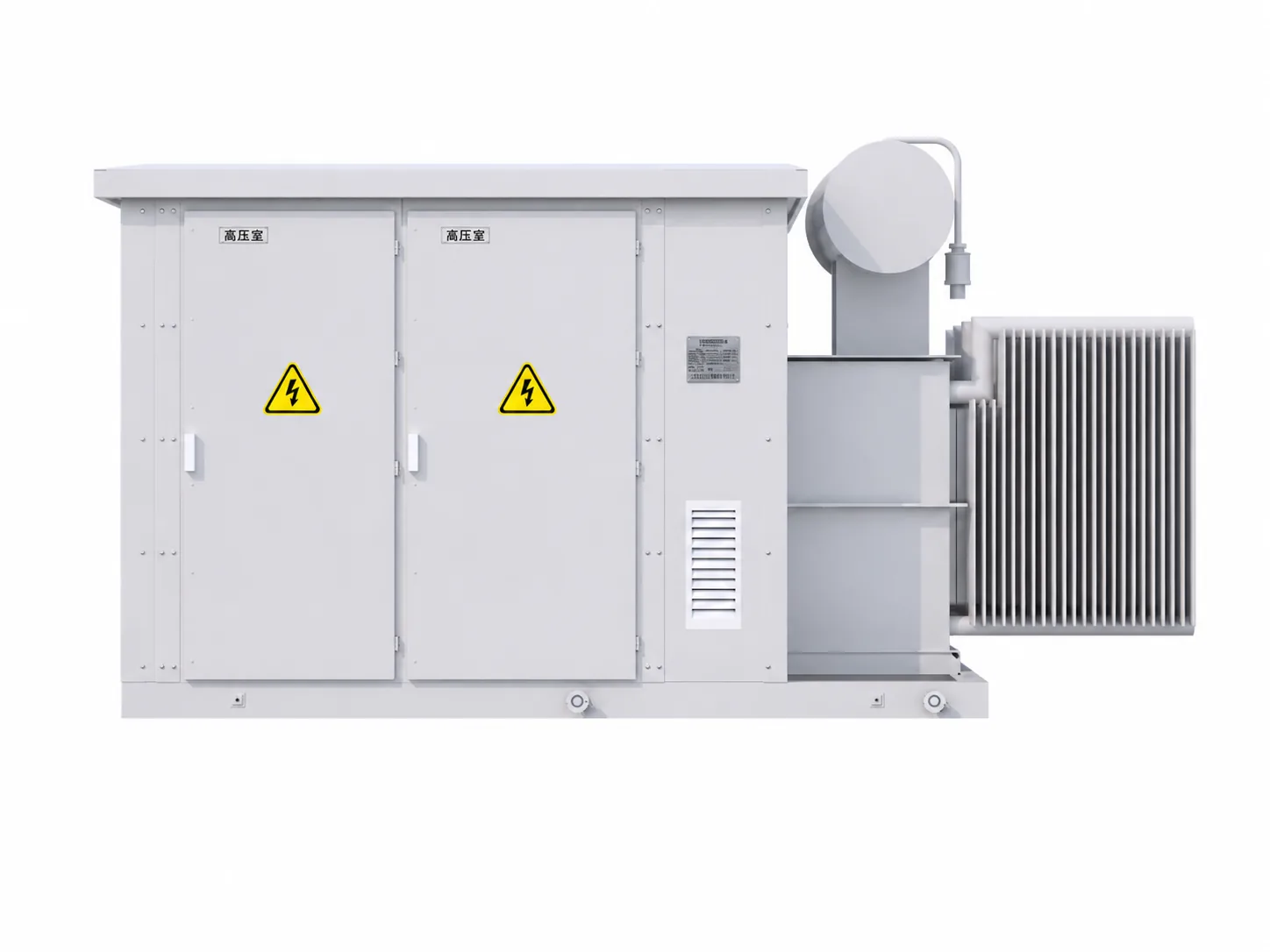

A prefabricated compact substation in the Chinese layout: a single outdoor enclosure partitioned into separate rooms — MV switchgear, transformer and LV distribution — each independently accessible. Offers a wide choice of MV switching configurations and the highest capacity ceiling of the three styles, suiting urban distribution, industrial parks and grid upgrades.
Key Specifications
High-voltage Rated Voltage10 – 35 kV
Low-voltage Rated Voltage0.4 – 1.14 kV
Maximum Operating Voltage40.5 kV
Rated Frequency50 / 60 Hz
Rated Capacity≤ 9000 kVA
Product Features
- Separate independent rooms
- Highest capacity ceiling (≤ 9000 kVA)
- Three MV switching configurations
- IP68 transformer tank
- Flexible for urban / industrial grids
