Medium Voltage Switchgear / Compact MV Switchgear

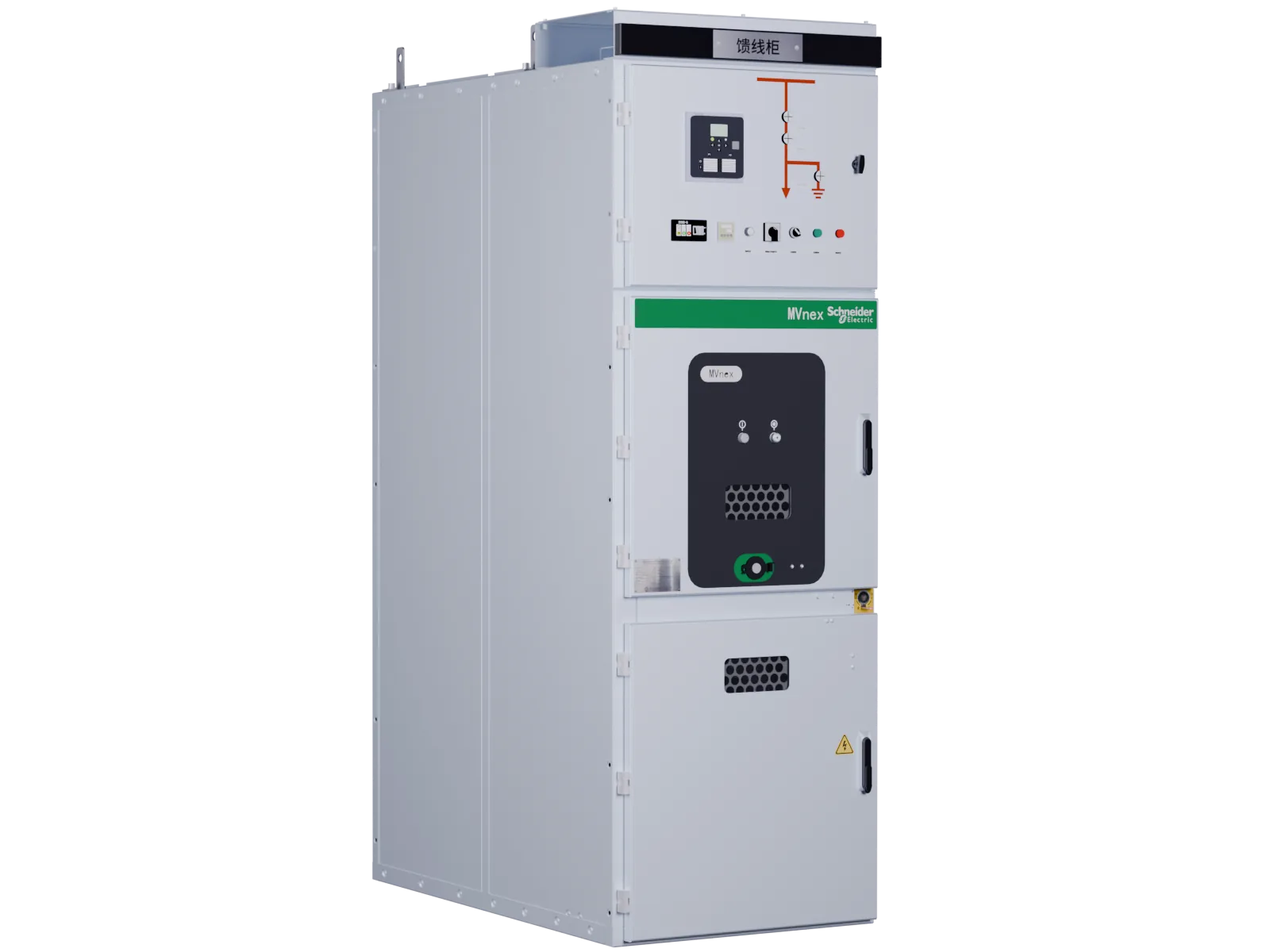

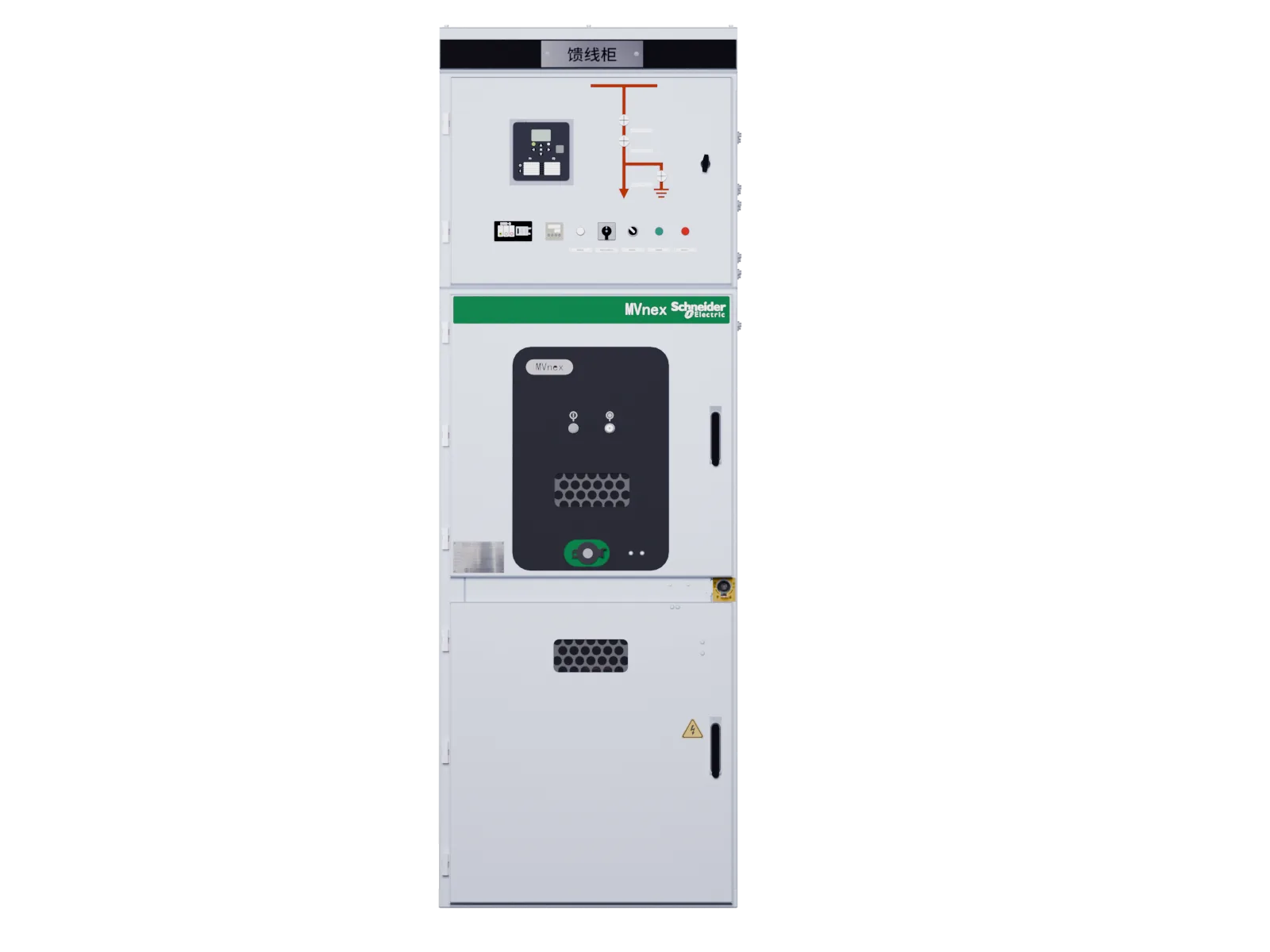

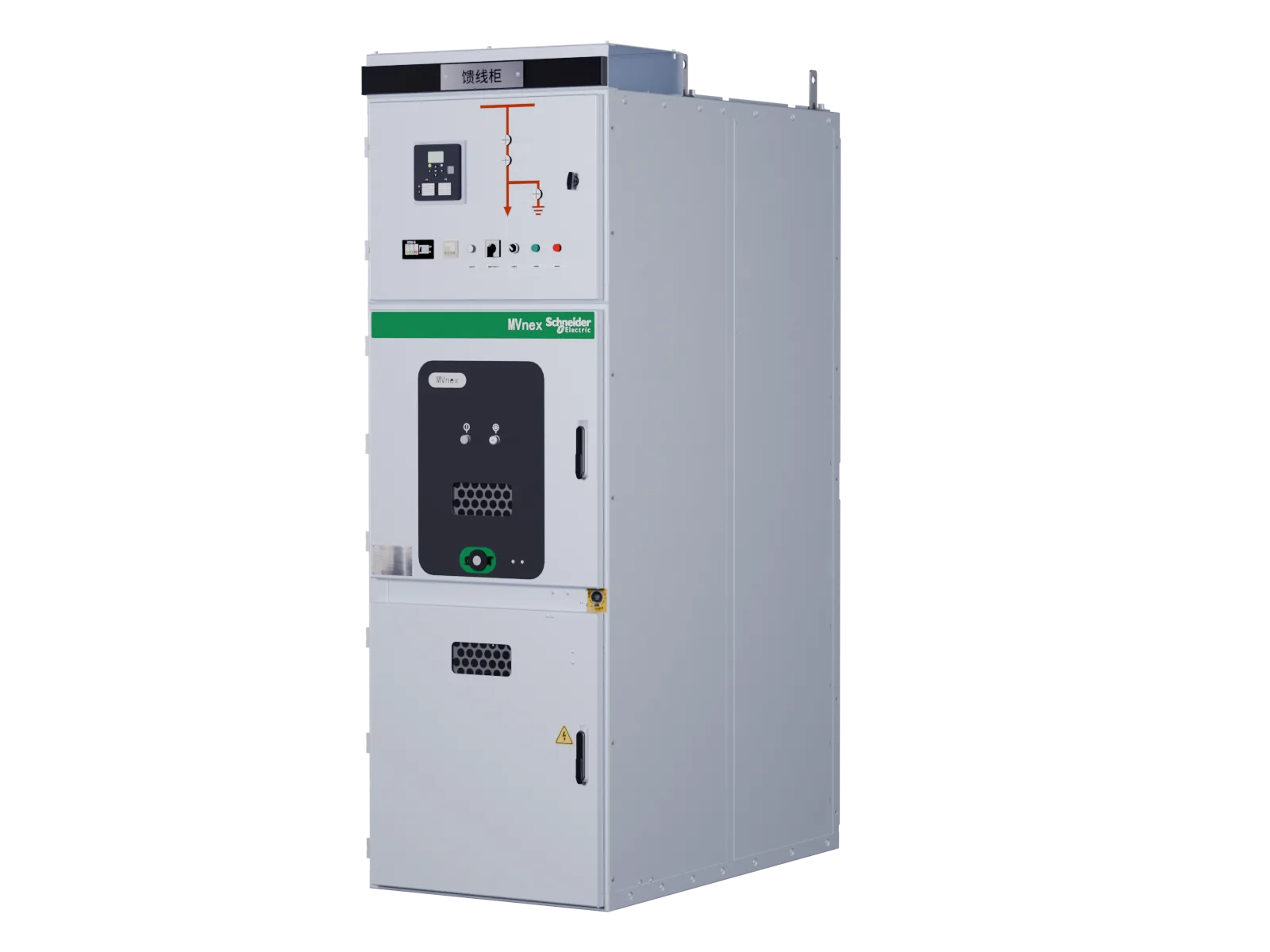

MVnex Compact MV Switchgear (12 / 24 kV)
Built on the Schneider Electric MVnex design, this compact medium-voltage switchgear platform is engineered with CAD, synthesis-laboratory and dynamic-simulation tools. Designed around real installation, operation and maintenance conditions — reliable in long-term service, simple to operate locally via a front-panel mimic diagram, and safe through full mechanical and electrical interlocking plus internal arc-fault containment. Available in two voltage classes: MVnex-12 (12 kV) and MVnex-24 (24 kV). MVnex is a trademark of Schneider Electric.
Key Specifications
StandardsIEC 62271-200 / -1 (ref. GB 3906)
Rated Frequency50 / 60 Hz
Protection DegreeEnclosure IP4X / compartment IP2X
Impact ProtectionIK10
Weight800 – 1200 kg
Product Features
- Internal arc-fault containment with IK10 impact protection
- Simple local manual operation with front-panel mimic
- Full mechanical + electrical interlocking
- Two voltage classes (12 / 24 kV)
- Compact footprint
