Low Voltage Switchgear / Modular LV Switchboard

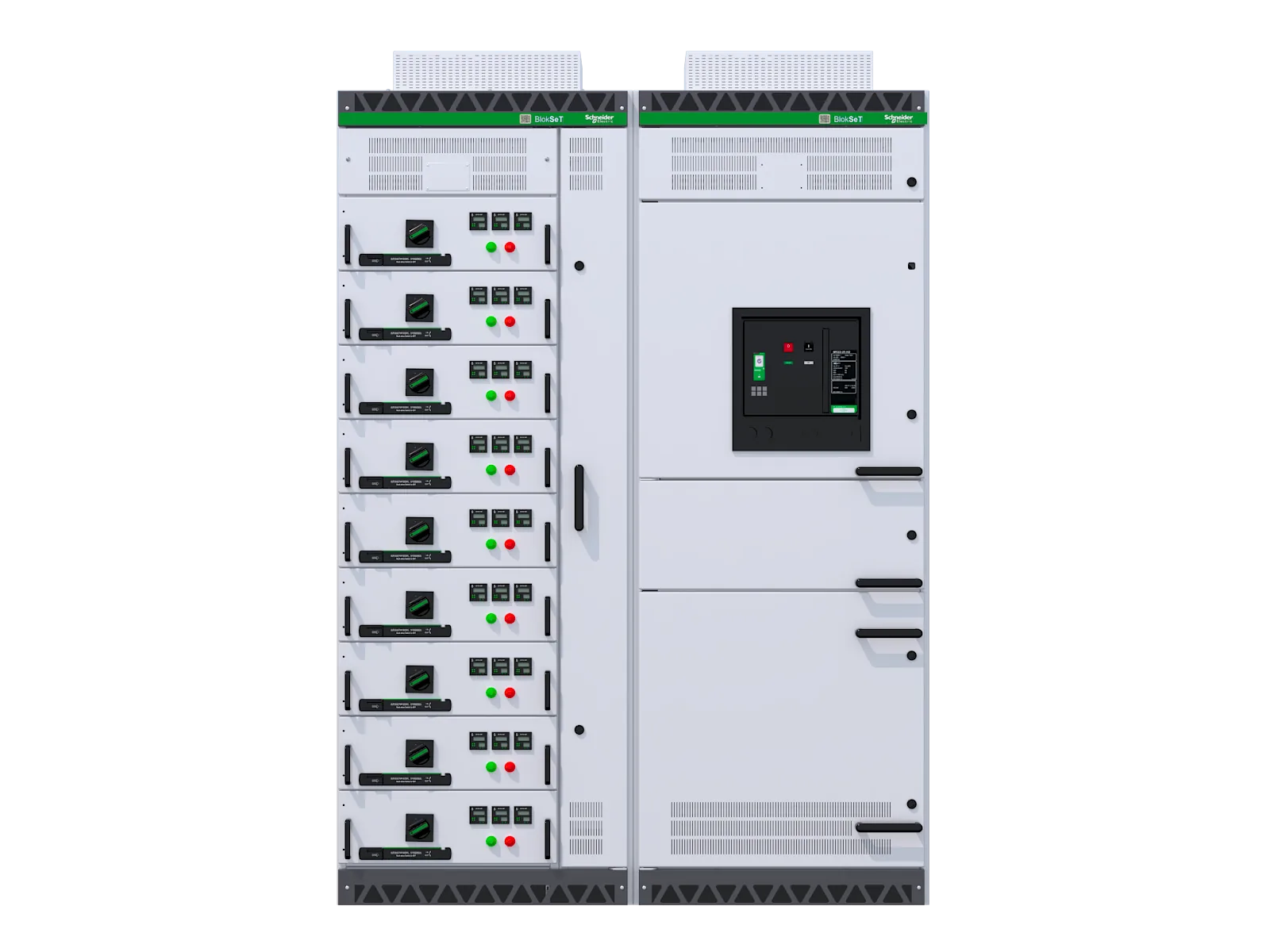

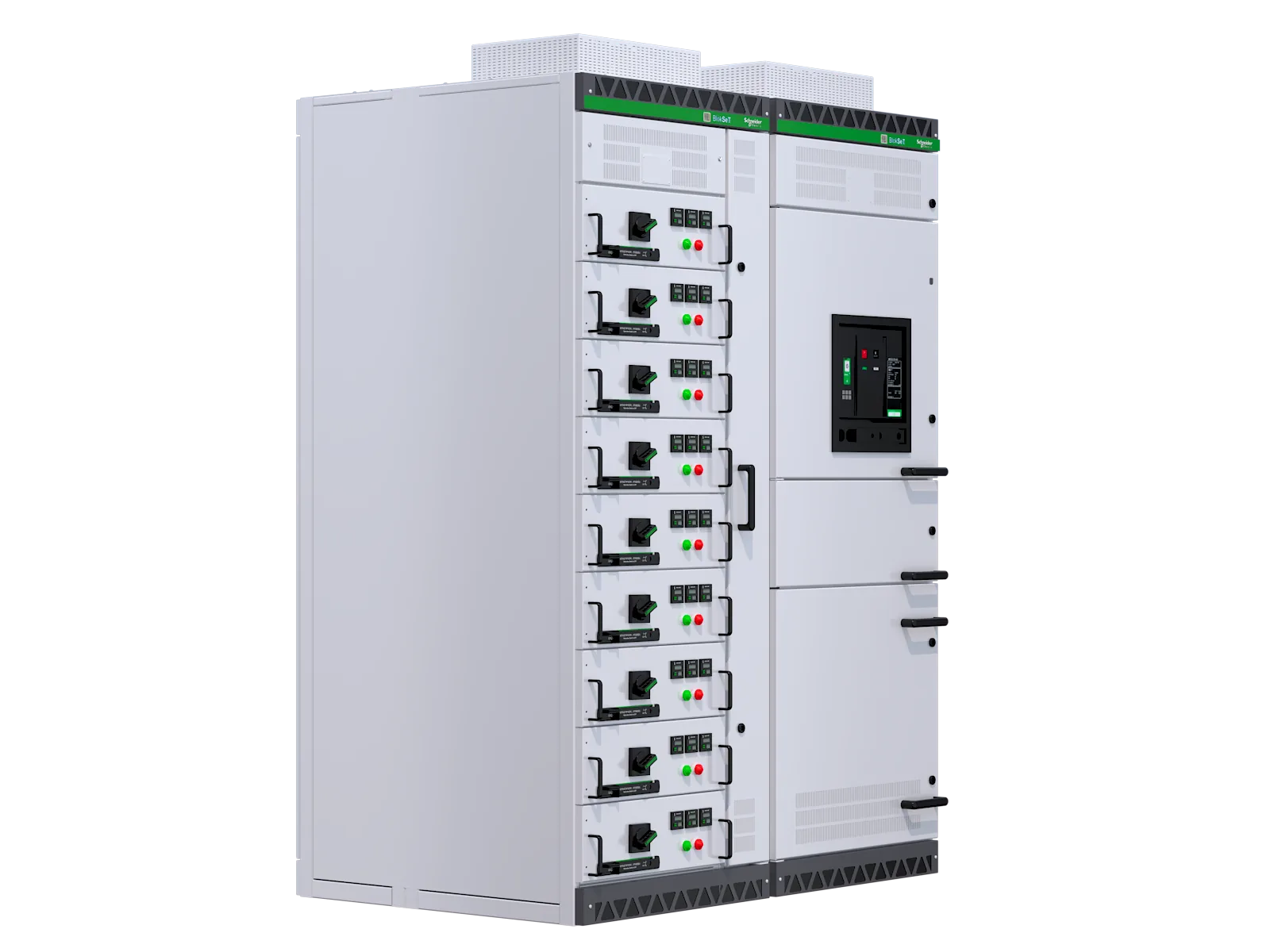

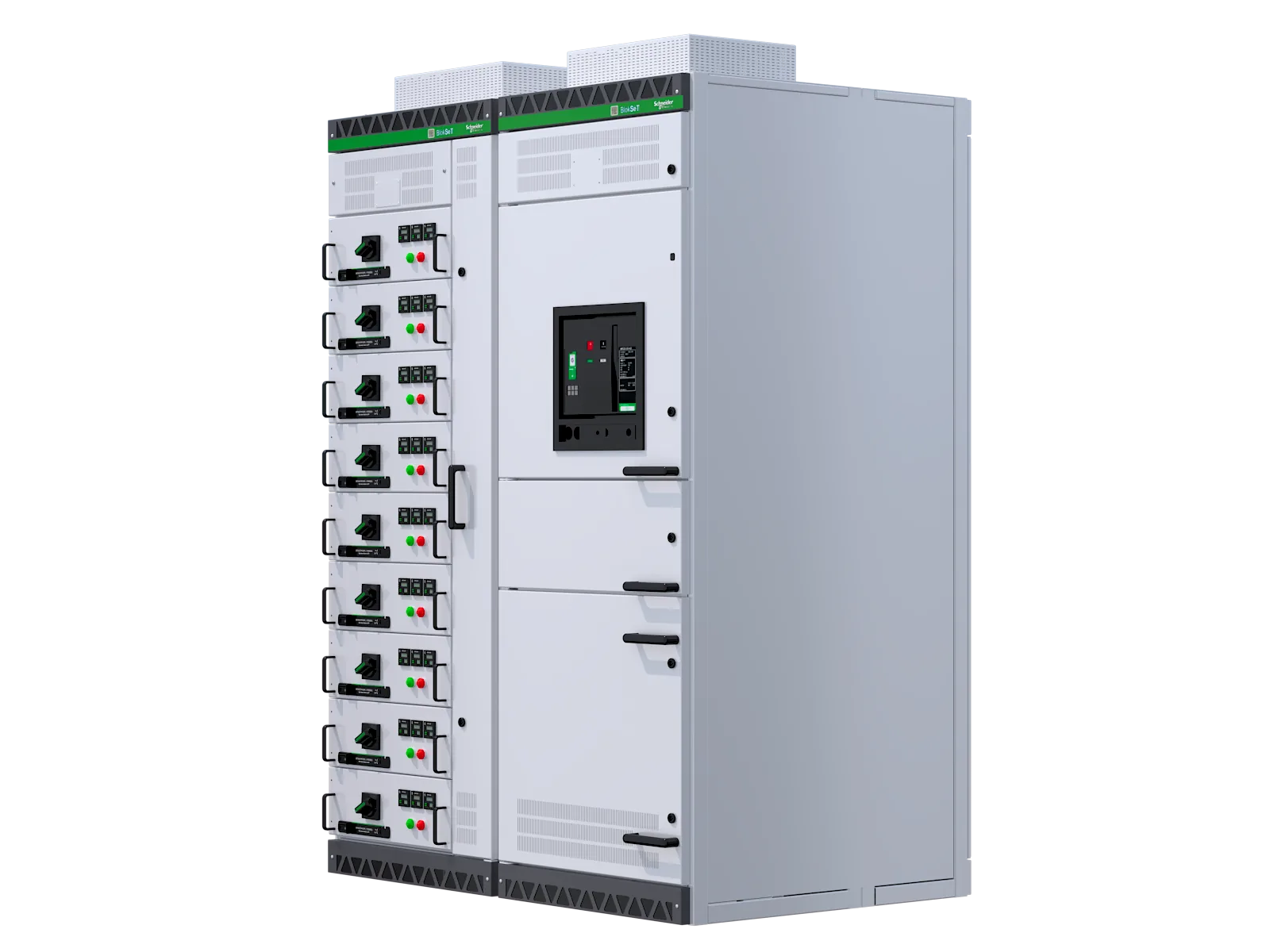

BLOKSET Modular LV Switchboard
Based on the Schneider Electric BLOKSET design, this modular low-voltage switchboard system serves power distribution and motor control across industrial and commercial installations. Built from standardized functional columns supporting fixed, disconnectable and withdrawable units (2M–12M), it scales from incoming / distribution boards to large main LV switchboards, and is qualified to demanding seismic, salt-spray, altitude and EMC requirements. BLOKSET is a trademark of Schneider Electric.
Key Specifications
StandardsIEC 61439-1/-2
Rated Voltage400 / 690 V
Rated Insulation Voltage1000 V
Rated Currentup to 6300 A
Frequency50 / 60 Hz
Product Features
- Standardized modular columns with withdrawable units (2M–12M)
- 100 kA short-time / internal-arc rating
- Level-9 seismic + 200 h salt-spray + 4000 m altitude qualified
- EMC-tested
- Type-tested assembly
