Ring Main Units (RMU) / Modular C-GIS RMU

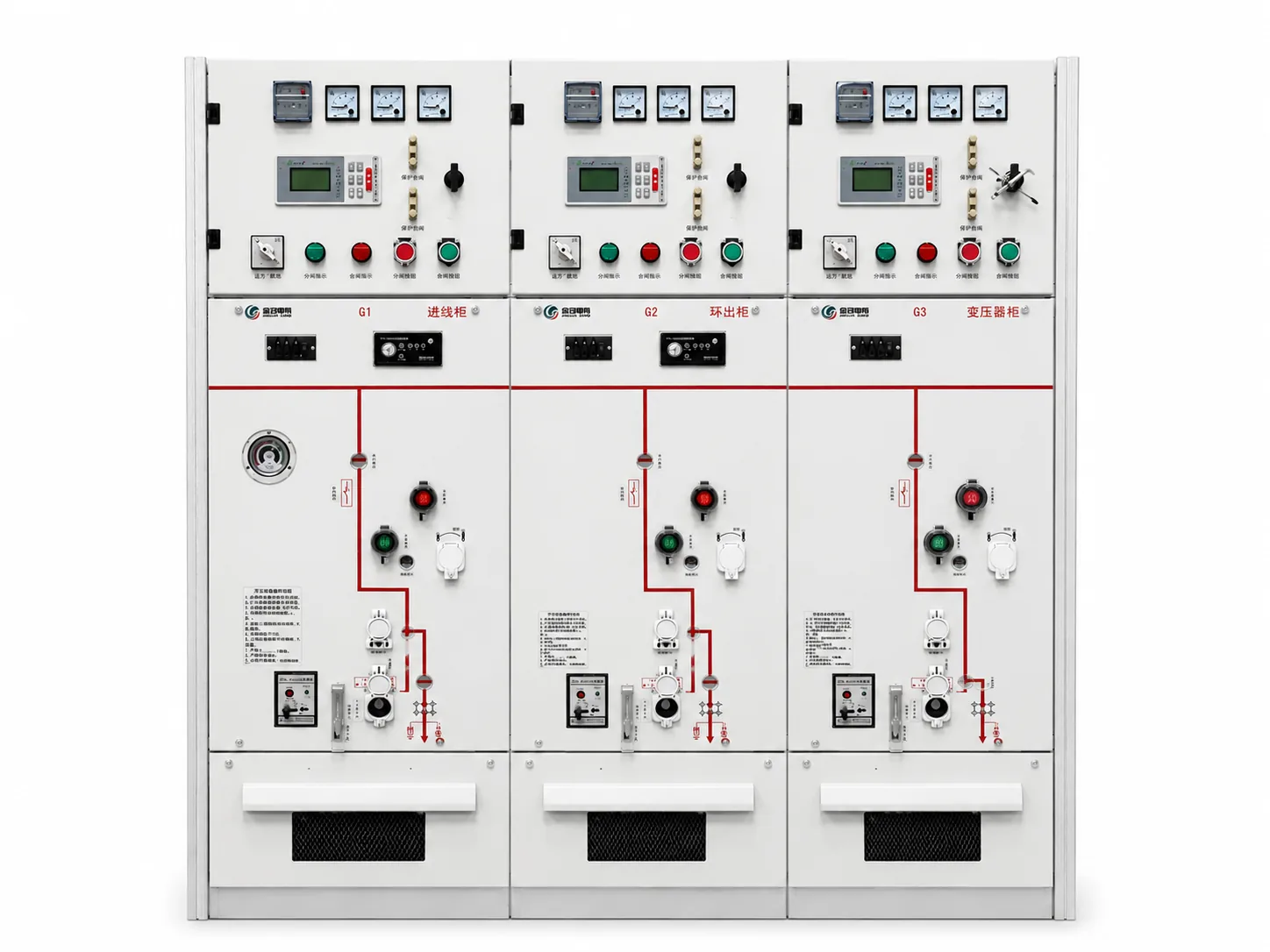

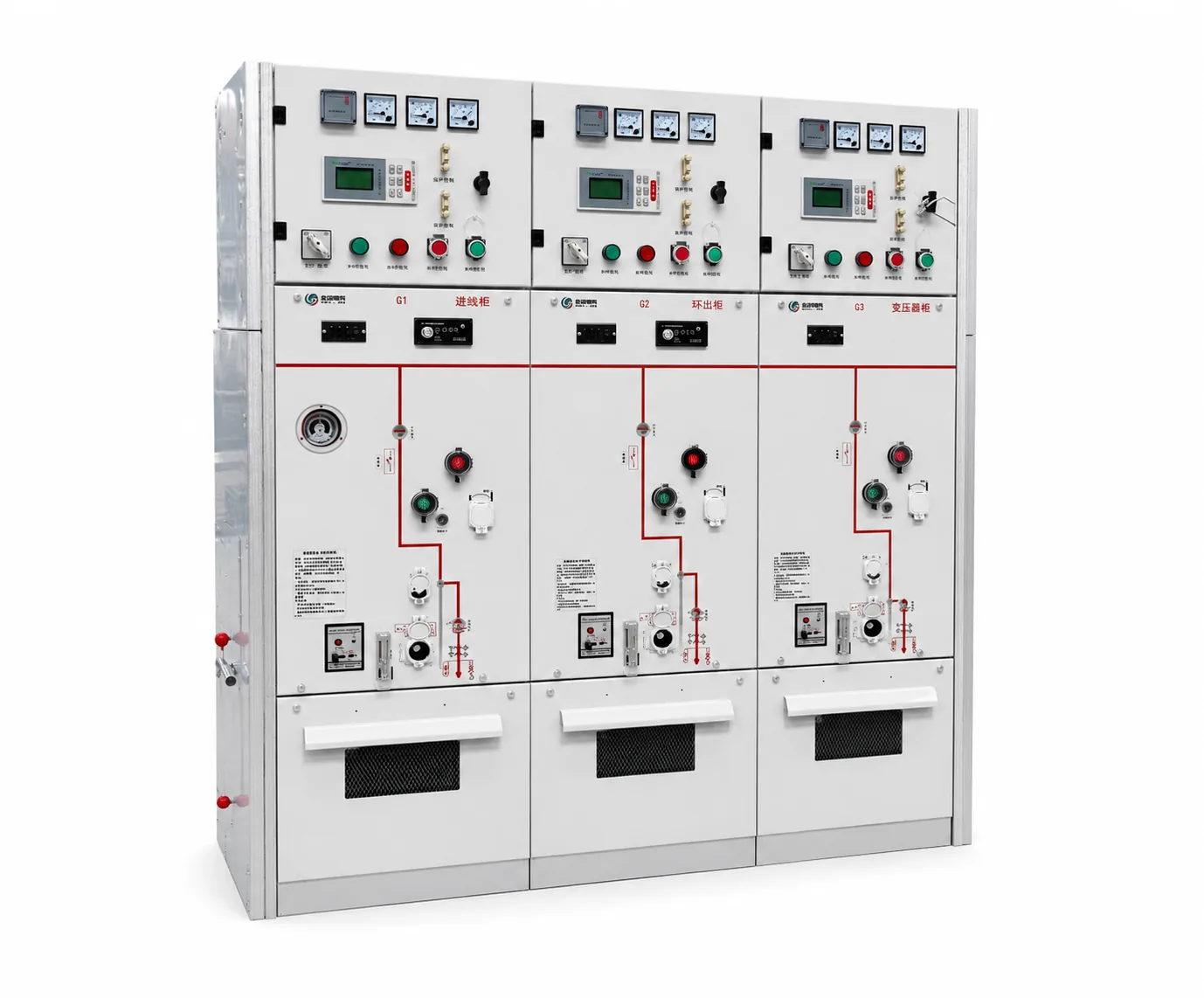

HLC-12 Gas-Insulated Modular RMU / C-GIS (12 kV)
A gas-insulated, fully sealed modular ring-main unit (C-GIS style) for 12 kV ring-network and cable distribution. Built from independent functional units — C (load-switch / cable), F (load-switch-fuse) and V (vacuum circuit breaker) — so configurations can be combined per project. A pressurized gas tank (IP67, ≤ 0.01 % annual leakage) and IK10-rated, IP54 switchgear body deliver a compact, maintenance-free unit for urban and underground networks.
Key Specifications
StandardsIEC 62271-200 (ref. GB 3906)
Rated Voltage12 kV
Rated Frequency50 Hz
Rated CurrentC: 630 A · F: 125 A · V: 630 / 1250 A
Power-frequency Withstand42 / 48 kV (isolation gap)
Product Features
- Modular C / F / V functional units (combine per project)
- Sealed gas-insulated tank (IP67, ≤ 0.01 % leakage)
- IK10 impact protection
- Cable-ready and maintenance-free
- Ideal for urban / underground networks
