Medium Voltage Switchgear / Metal-clad Switchgear

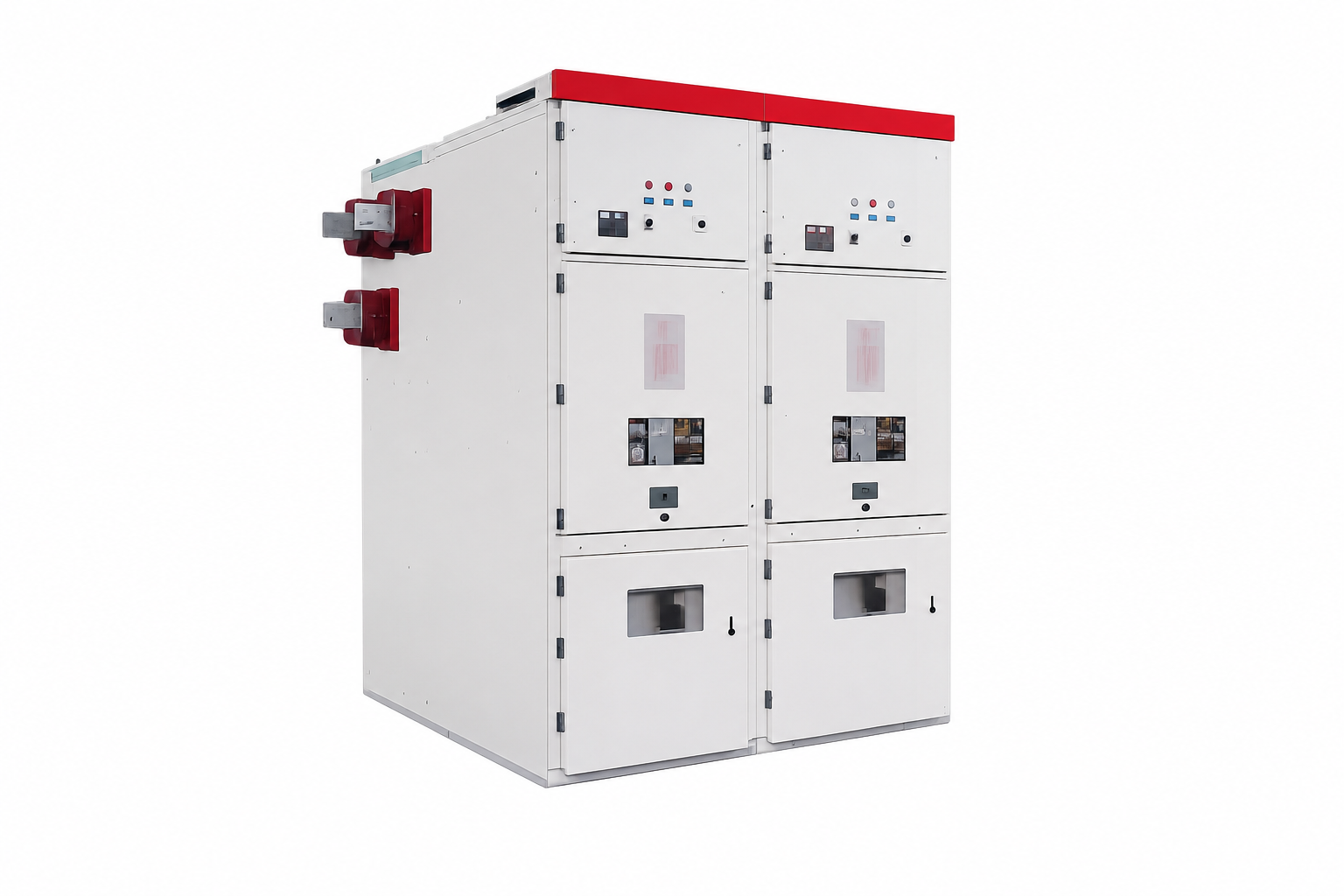

Medium Voltage Metal-clad Switchgear (KYN28 / KYN61)
Indoor metal-clad withdrawable switchgear for primary distribution — the KYN28 mid-mounted withdrawable-truck design in 12 kV (up to 4000 A), plus the 40.5 kV floor-rolling KYN61 for 35 kV main substations. Four / five-compartment metal segregation with five-prevention interlocks.
Detailed technical data and datasheets are available on request. Contact our sales team for the full specification sheet tailored to your project requirements.
Product Features
- KYN28-12 mid-mounted withdrawable truck — the most widely used 12 kV primary-distribution workhorse
- KYN61-40.5 floor-rolling truck for 35 kV / Saudi SEC 33 kV main substations
- Four-compartment (KYN28) / five-compartment (KYN61) metal segregation with independent pressure relief
- Comprehensive five-prevention mechanical interlocks
- Rated current up to 4000 A; single / sectionalized / double busbar systems
- Compliant with GB 3906, GB/T 11022, IEC 62271-200 and DL/T 404
